Product Introduction

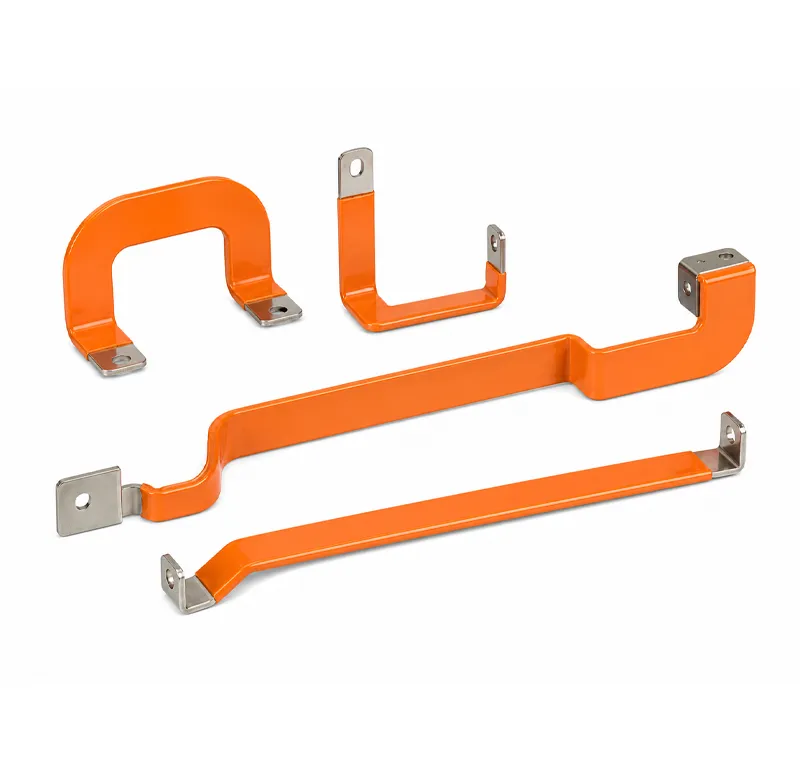

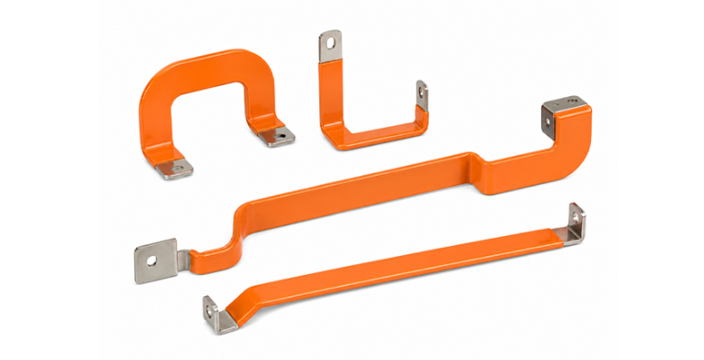

The copper-aluminum busbar assembly is a customized conductive component used for power transmission, current distribution, and electrical connection in high-load equipment. It is designed for applications where stable conductivity, lightweight structure, reliable installation, and controlled resistance are required.

By combining copper and aluminum materials, this busbar solution helps balance conductivity and weight. Copper provides strong electrical performance in key current paths, while aluminum helps reduce overall weight and supports cost-effective structural design. The assembly can be customized according to the customer’s electrical layout, installation space, current load, insulation needs, and connection method.

Shenzhen Fuwanglong Hardware supports OEM busbar manufacturing for energy storage, new energy vehicles, industrial electrical systems, power cabinets, and related equipment. The product can be produced based on drawings, samples, 3D files, or project-specific electrical requirements.

Key Specifications & Parameters

Product Type: Copper-aluminum busbar assembly

Main Materials: Copper, aluminum, copper-aluminum composite material, or customized conductive metal structure

Processing Methods: Stamping, CNC machining, precision cutting, bending, welding, bonding, surface treatment, and assembly support

Surface Treatment Options: Tin plating, nickel plating, silver plating, anti-oxidation treatment, or customized conductive surface finishing

Structure Options: Rigid busbar, laminated busbar, shaped conductive bar, bent busbar, punched busbar, or assembled conductive component

Customization Method: Produced according to drawings, samples, current load, installation layout, hole position, thickness, and surface requirements

Application Direction: Energy storage systems, EV battery packs, industrial control cabinets, power distribution equipment, electrical cabinets, and high-current assemblies

OEM/ODM Support: Available for prototype development, engineering adjustment, sample verification, and batch production

Main Functions

Stable current transmission
The busbar is designed to support high-current electrical connection with controlled resistance. It helps distribute current between battery modules, power units, electrical cabinets, or control systems while maintaining stable conductive performance during operation.

Copper-aluminum weight optimization
The combination of copper and aluminum helps reduce weight compared with full copper structures while still keeping strong conductivity in key areas. This is useful for systems where both electrical performance and lightweight design need to be considered.

Customized electrical layout matching
Busbar size, hole position, bending angle, thickness, material combination, and surface treatment can be adjusted according to the customer’s equipment structure. This allows the component to fit compact or non-standard electrical layouts more effectively.

Improved installation efficiency
Compared with complex cable wiring, a customized busbar assembly can make the electrical connection layout cleaner and more organized. It can also help reduce installation difficulty in battery systems, power cabinets, and industrial control equipment.

Heat and resistance management
A properly designed conductive busbar helps reduce unnecessary resistance loss and supports better current distribution. For high-load equipment, this can help improve system stability and reduce thermal concentration around connection points.

OEM production support
The busbar can be manufactured for engineering samples, small-batch trial production, or mass production. This makes it suitable for customers who need customized conductive components for long-term equipment projects.

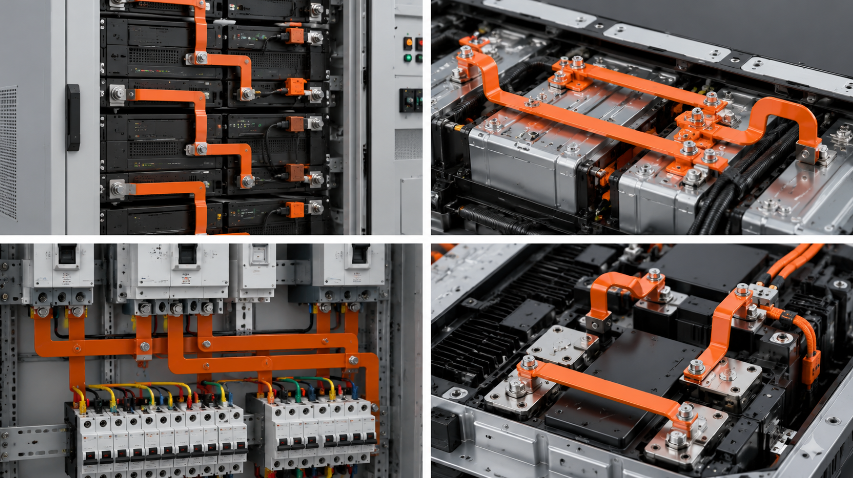

Specific Application Scenarios

Energy storage systems
Copper-aluminum busbar assemblies are commonly used in energy storage cabinets, battery racks, power conversion systems, and module connection structures. They help connect electrical units in a stable and organized way while supporting high-current operation.

EV battery packs
In new energy vehicle battery systems, customized busbars can be used for module connection, power distribution, and internal conductive layouts. The copper-aluminum structure helps balance conductivity, weight, and installation requirements.

Industrial power distribution cabinets
The busbar can be applied in industrial electrical cabinets, power control boxes, and distribution panels where stable current transmission and compact internal wiring are needed. Customized shapes can help match different cabinet layouts.

Battery module connection assemblies
For battery pack and battery module designs, busbars can provide a cleaner connection method than scattered wiring. Hole positions, thickness, surface treatment, and insulation options can be customized according to system design.

High-current control systems
Industrial control systems, power modules, and electrical equipment often require conductive components that can handle continuous current loads. Copper-aluminum busbars can support reliable connection between internal electrical units.

Electrical equipment OEM projects
For OEM equipment manufacturers, customized busbar assemblies can be developed based on the final product structure. This helps improve assembly efficiency, reduce wiring complexity, and maintain more consistent production quality.

FAQ

Q1: Can this copper-aluminum busbar be customized according to our drawings?
A1: Yes. The busbar can be customized based on drawings, samples, 3D files, current load, installation layout, hole position, thickness, surface treatment, and assembly requirements.

Q2: What is the advantage of using copper and aluminum together?
A2: Copper provides strong conductivity, while aluminum helps reduce weight and material cost. A copper-aluminum structure can offer a balanced solution for electrical performance, structural design, and production efficiency.

Q3: What surface treatments are available for this busbar?
A3: Common surface treatments include tin plating, nickel plating, silver plating, anti-oxidation treatment, or other customized conductive finishes based on the application environment.

Q4: Is this busbar suitable for energy storage systems?
A4: Yes. It can be used in energy storage cabinets, battery racks, battery modules, power conversion systems, and related high-current electrical connection structures.

Q5: Can the busbar be used in EV battery pack applications?
A5: Yes. The busbar can be customized for EV battery packs, module connections, power distribution layouts, and other conductive assemblies in new energy vehicle systems.

Q6: Do you support prototype samples before mass production?
A6: Yes. Prototype samples can be produced for structure checking, installation testing, current layout evaluation, and surface treatment confirmation before batch production.

Q7: What information is helpful for quotation?
A7: Drawings, material requirements, current load, thickness, hole position, surface treatment, quantity, insulation needs, and application details are helpful for accurate evaluation.
